Add a custom variable

Tag Manager

Needed permissions: owner, manage, edit & publish or edit

Video tutorial: watch on YouTube

A variable is a tool for storing data. This data can be accessed by tags, triggers or other variables. Let’s take the page URL variable as an example; it holds and shares the URL of the current page.

Tag Manager offers built-in variables as well as custom variables that you can define yourself.

In this article, we’ll show you how to add a custom variable.

Before you start

Here are some things to know before you start:

  • A variable is written as a text wrapped in double curly braces {{ variable }}.
  • Variables are commonly used to store API keys or share extra information from your website.
  • You can use variables in tags, triggers and other variables. However, when you put a variable inside another one, you can’t make a loop where A depends on B, B depends on C, and C depends on A.
  • You can add a custom variable through a dataLayer push in JavaScript. But it can only be used in the custom code (async) tag.

Create a variable

To create a variable, follow these steps:

  1. Go to Menu > Tag Manager.
  2. Navigate to Variables.
  3. Click Add a variable.
  4. Name your variable.
  5. Select a variable type.
    Create a variable in Tag Manager in Piwik PRO

    Tip: For more about variable types, read this article.

  6. Set up your variable. Each variable has different settings:
    • Custom JS variable: Write a JavaScript function that ends with a return statement. Read more
    • Constant variable: Type in a constant value. Read more
    • Cookie variable: Type in a cookie name. Read more
    • Data layer variable: Type in a data layer variable name. Read more
    • Document variable: Type in a document name. Read more
    • DOM element variable: Type in an element ID, CSS selector, or XPath. Read more
    • Available from 16.33.0 Lookup table variable: Choose the input variable and map inputs to outputs. Read more
    • Random number: You don’t need to set anything here. This variable gives a random value between 0 and 1 (inclusive of 0, but not 1). Read more
    • URL variable: Choose Get parameter, Query or Protocol. Read more

    Note: Available from 16.30.0 You can use a variable inside another variable. Just keep in mind that a variable can’t contain a circular dependency. Don’t create a closed loop. Example: A depends on B, B depends on C, C depends on A.

  7. When you’re done, click Save.
  8. Once you’ve crafted a variable, you can easily choose it from the list when working with tags, triggers or other variables.

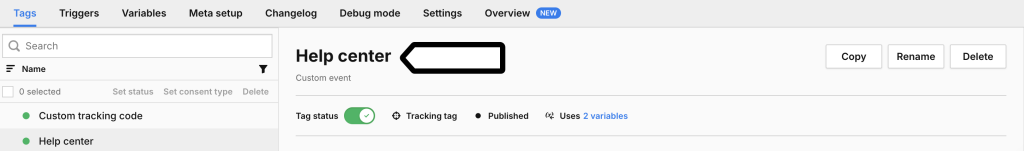

    Variable in a tag

    Create a variable in Tag Manager in Piwik PRO

    Variable in a trigger

    Create a variable in Tag Manager in Piwik PRO

    Variable in a code editor

    Create a variable in Tag Manager in Piwik PRO

    Note: In a code editor, start typing {{ to see the available variables.

  9. All set!

Variables and a context in the custom code (async) tag

When you use a variable in the custom code (async) tag, you need to be aware of the context. By context, we mean a place where the variable is used. As long as the contexts are not mixed up, everything will work properly.

Now we’ll show you some examples of correct context and an example of incorrect context.

Correct context

Example: Custom tag, HTML and variable in URL.

<img src="//ab-testing/images/banner_{{abVersion}}.png">

Example: Custom tag, HTML and variable not in the URL.

<div class="layout-{{abVersion}}">... some content here ...</div>

Example: Custom tag, JavaScript and variable in the string.

<script type="text/javascript"><br />
    (function (d) {<br />
        setTimeout(function () {<br />
            var f = d.getElementsByTagName('script')[0], s = d.createElement('script'); s.type = 'text/javascript';<br />
            s.async = true; s.src = '//example.com/{{ customerID }}/{{ siteToken }}.js'; f.parentNode.insertBefore(s, f);<br />
        }, 1);<br />
    })(document);<br />
</script>

Note: You might be wondering why a variable in this example isn’t considered a mixed context. This is because we’re always in a JavaScript context here. We create a script tag using JavaScript exclusively; we don’t output a complete HTML.

Example: Custom tag, JavaScript and variable not in the string.

<script type="text/javascript"><br />
    var _paq = _paq || [];<br />
    _paq.push(['setCustomUrl', {{ url }}]);<br />
    _paq.push(['setDocumentTitle', {{ title }}]);<br />
    _paq.push(['trackPageView']);<br />
</script>

Incorrect context

Example: A mixed context occurs when, within one script, another script is dynamically generated with a src attribute and inserted using document.write.

<script type="text/javascript"><br />
    document.write(decodeURI('%3Cscript%20src="' +<br />
        (document.location.protocol === 'https:' ?<br />
            'https://example.com/{{ partition }}/path/{{ guid }}.js' :<br />
            'http://example.com/{{ partition }}/path/{{ guid }}.js') + '"%20type="text/javascript"%3E%3C/script%3E'));<br />
</script>

In this case, both variables, “partition” and “guid,” are used in JavaScript. However, they are essentially components of the HTML script tag’s URL. Also, everything is supposed to be URI encoded. If we were to fix this code, it would look like this:

<script type="text/javascript"><br />
    var partition = encodeURI(encodeURI('{{ partition }}'));<br />
    var guid = encodeURI(encodeURI('{{ guid }}'));</p>
<p>    document.write(decodeURI('%3Cscript%20src="' +<br />
        (document.location.protocol === 'https:' ?<br />
            'https://example.com/' + partition + '/path/' + guid + '.js' :<br />
            'http://example.com/' + partition + '/path/' + guid + '.js') + '"%20type="text/javascript"%3E%3C/script%3E'));<br />
</script>

What we’ve done is double-encoded the variables. This is necessary because the entire script is passed through the decodeURI function. However, we need a URI-encoded string to safely pass it to the script’s URL.
